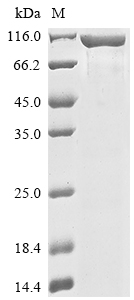

(Tris-Glycine gel) Discontinuous SDS-PAGE (reduced) with 5% enrichment gel and 15% separation gel.

Western Blot
Positive WB detected in: RAW264.7 whole cell lysate(20μg), 293T whole cell lysate(20μg), JK whole cell lysate(20μg), MCF7 whole cell lysate(20μg)
All lanes: HAVCR1 antibody at 1:1000
Secondary
Goat polyclonal to rabbit IgG at 1/50000 dilution
Predicted band size: 40 kDa
Observed band size: 50 kDa
Exposure time: 120s

IHC image of CSB-RA974628A0HU diluted at 1:50 and staining in paraffin-embedded human kidney tissue performed on a Leica BondTM system. After dewaxing and hydration, antigen retrieval was mediated by high pressure in a citrate buffer (pH 6.0). Section was blocked with 10% normal goat serum 30min at RT. Then primary antibody (1% BSA) was incubated at 4°C overnight. The primary is detected by a Goat anti-rabbit polymer IgG labeled by HRP and visualized using 0.05% DAB. Secondary antibody only control: uses 1% BSA instead of primary antibody
